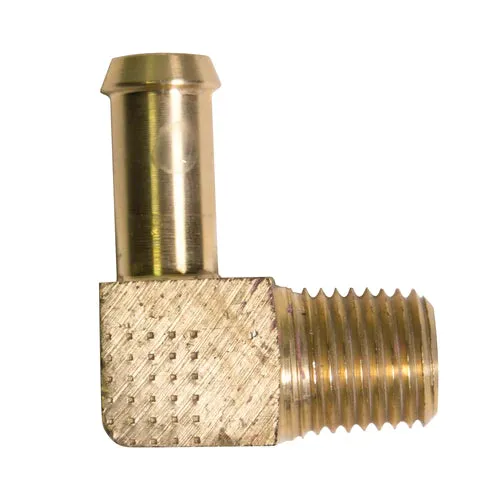

AGS Brass Male Fuel Hose 90 Degree Elbow Clamp Fitting for 3/8" Hose (Male 1/4-18 NPT)

Part Number: BL FHF-16B

Nipple Size: 3/8 inch
End 2 Type: 1/4 - 18 inch NPT
Finish: Zinc
Material: Brass

AGS male clamp hose fittings are for low-pressure multi-purpose hose applications going to pipe thread ports. To assemble, cut hose squarely. Slide clamp onto hose and then lubricate. Push hose onto fitting until bottoming out. Position clamp between fitting ball and end of hose. Working temp (pressure): -40 degrees F to 250 degrees F (60 psi). Applications include fuel, oil, & vacuum

Interchanges:

Edelmann: 831460
