| Depth |
3.75 |
| Description_ABR |
EFI Fuel Smp |
| Description_DEF |
Fuel Tank Sump |
| Description_DES |
FUEL SUMP KIT |
| Description_EXT |
Universal EFI Fuel Sump tank Kit w/pump, tank, mounting |
| Description_EXT |
Universal EFI Fuel Sump tank Kit w/pump; tank; mounting |
| Description_FAB |
For Builders And Consumers Wanting To Use Own Fittings/Hose |
| Description_FAB |
Requires Vent Line From Sump Overflow Vent to Fuel Tank |
| Description_INV |
Universal EFI Fuel Sump tank Kit |
| Description_KEY |
Edelbrock Fuel Sump EFI Fuel Pump Fuel System high pressure Fuel Injection Fuel Injection pump Fuel kit fuel reservoir Fitech |
| Description_LAB |
Fuel Tank Sump #36032 35-90 PSI 67 GPH/255 LPH |
| Description_LAB |
Universal EFI Fuel Sump #36032, 35-90 PSI, 67 GPH/255 LPH |
| Description_MKT |

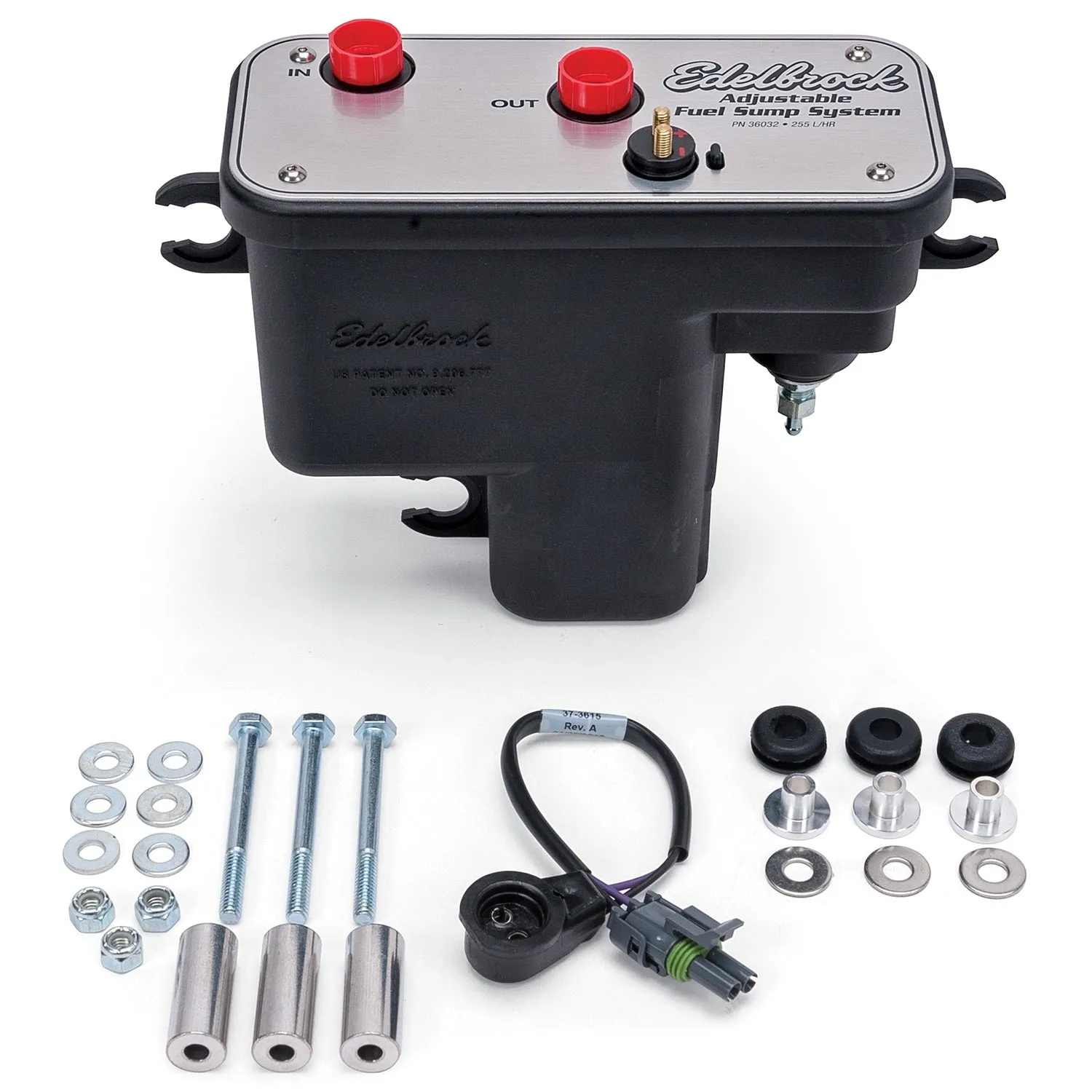

The Universal Fuel Sump #36032 is designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped with an existing low-pressure carbureted fuel system. This Universal Fuel Sump is a self-contained high-pressure fuel pump/sump unit that can be easily installed under the hood. The unique design of this Fuel Sump allows it to deliver constant fuel pressure with no fuel return line, external fuel pressure regulator or fuel tank modifications. The Edelbrock Universal Fuel Sump is compatible with the existing factory fuel tank and pump and is ideal for use with aftermarket EFI systems as well as many popular engine swap applications that require constant 35-90 PSI fuel pressure. This Universal Fuel Sump features a compact design that is adjustable from 35 to 90 PSI and includes a vacuum reference port. A flow rate of 67 GPH can support up to 600 HP and is a perfect choice to use with Pro-Flo 3, Pro-Flo 4 or other aftermarket EFI systems. Part #36032 is the Universal Fuel Sump with electrical harness and mounting hardware designed for consumers who want to utilize their own hose and fittings. A complete Universal Fuel Sump Kit #36031 is available with harness, hardware, hose, filter and fittings included. Both will require the installation of a vent line from the sump overflow vent port to the fuel tank. The Edelbrock Universal EFI Fuel Sump is the easiest and most affordable way to make your fuel system EFI ready. NOTE: THIS SUMP IS NOT INTENDED FOR OFF ROAD USE, ROCK CRAWLING OR APPLICATIONS WHERE VEHICLE WILL BE SUSTAINED AT INCLINE OR DECLINE ANGLES GREATER THAN 45 DEGREES FOR EXTENDED DURATIONS. |
| Description_MKT |

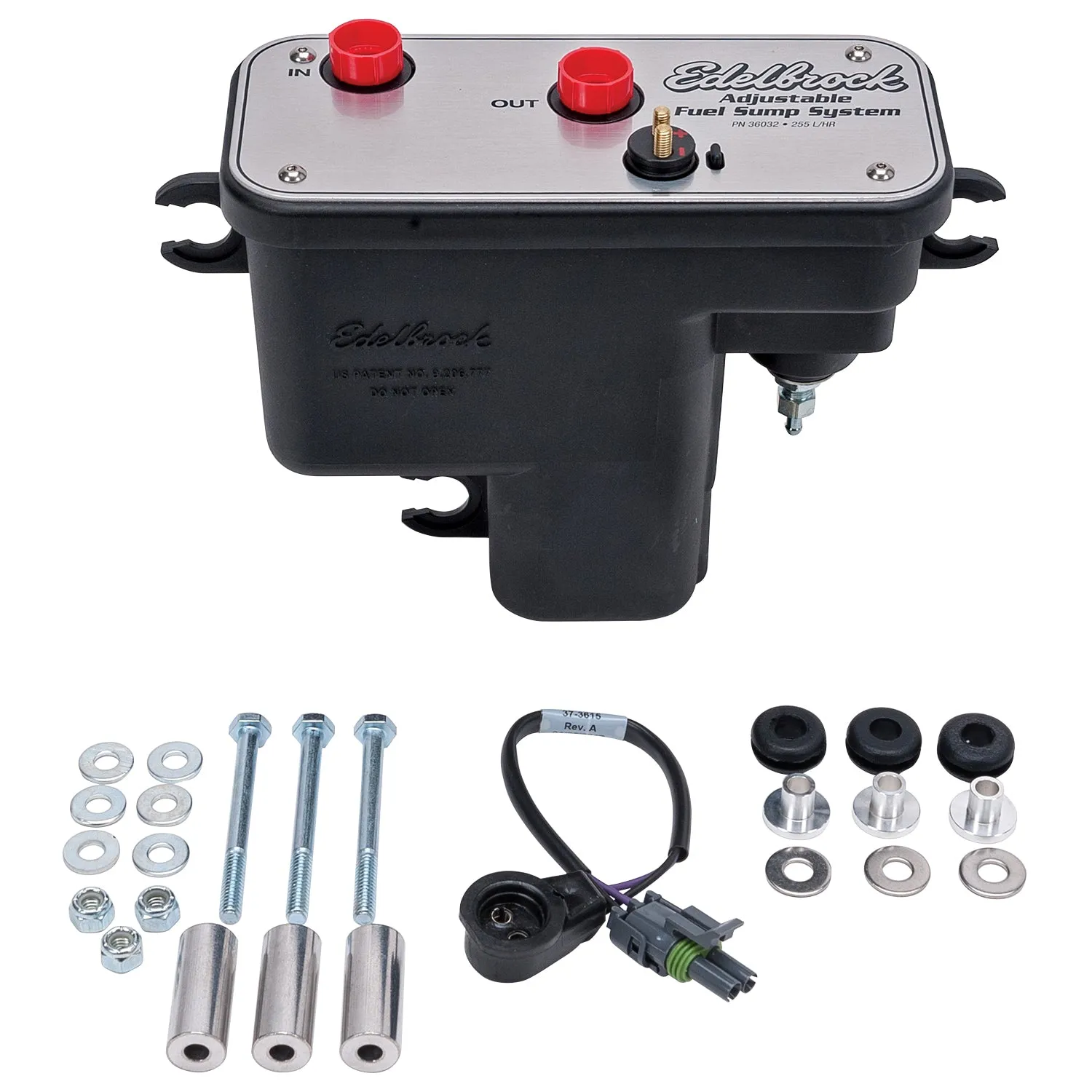

These Universal Sump Fuel Kits are designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped with an existing low pressure carbureted fuel system. They are a complete self-contained system that can be easily installed under the hood. The unique design of these systems allow them to deliver a constant fuel pressure with no fuel return line, external fuel pressure regulator or fuel tank modifications. They are compatible with the existing factory fuel tank and pump. They are ideal for use with aftermarket EFI systems and with many popular engine swap applications that require constant 35-90 psi fuel pressure. These Fuel Sump Kits feature a compact design that is adjustable from 35 to 90 psi and include a vacuum reference port. They are available in a 67 gph flow rate and can support up to 600 HP. They're great solutions when used with a Pro-Flo 3, Pro-Flo 4 or other aftermarket EFI system. Complete kit #36031 includes a durable, lightweight plastic fuel sump tank with high pressure fuel pump, wiring harness, hose and fittings. Fuel Sump Tank Assembly #36032 are for builders and consumers that want to utilize their own hose and fittings. Will require the installation of a vent line from the sump overflow vent port to the fuel tank. Edelbrock Universal EFI Sump Fuel Kits are the most affordable way to make your fuel system EFI ready. |
| Description_SHO |
{ Sellable : Yes } |
| Description_SHP |
{ eo : 9in.} |
| Fittings Included |
No |
| Fuel Pump Included |
Yes |
| height |
4.12 |
| height |
9 |
| Hose Included |
No |
| length |
13.5 |
| LTL |
N |
| Maximum Flow Rating |
67 GPH/255 LPH |
| Mounting Hardware Included |
Yes |
| Pressure Rating |
35-90 |
| Quantity |
Sold Individually |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| weight |
4.1 |
| width |
10 |
| width |
10.5 |
| Wiring Harness Included |
Yes |
