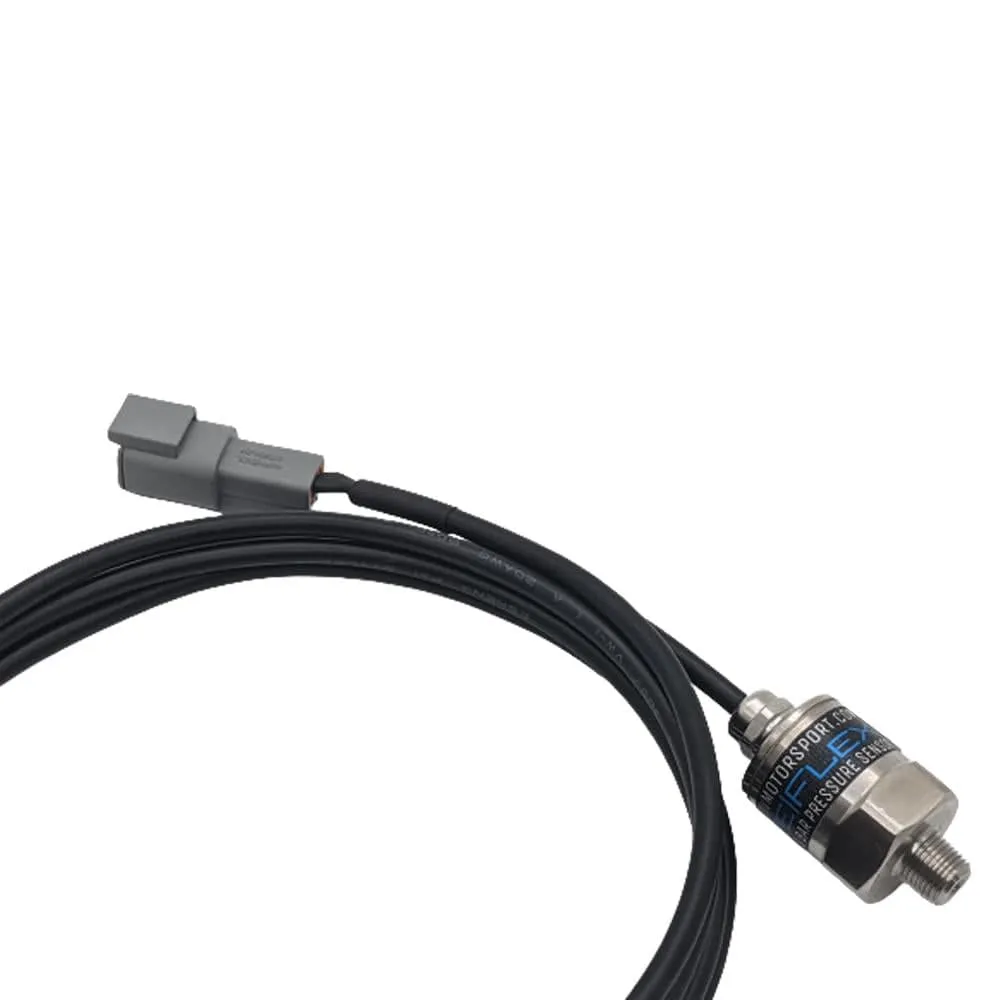

This 0-10 Bar sensor is safe for fuel pressure, exhaust gas back pressure, oil pressure, coolant pressure, and more. Paired with an ATM 2 Pin connector it is Plug-n-Play to your MOTIV Re|Flex.

Includes:

• 0-10 Bar Sensor
• ATM 2 Pin PnP Connector

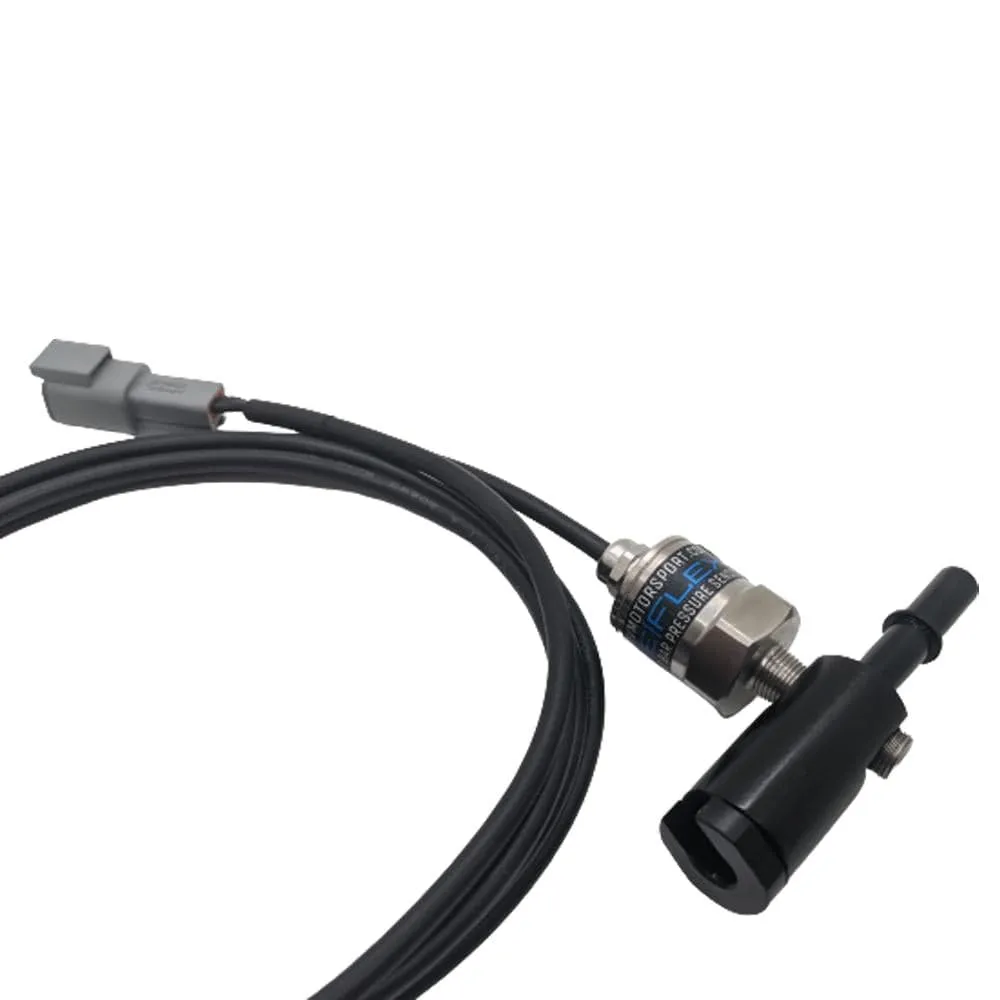

Optional Adapters: (NOT necessary if running our latest fuel lines with the included 1/8" NPT port built into the line)

• 3/8 Female to 3/8 Male SAE Quick Connect with 1/8" NPT Port
• 5/16 Female to 5/16 Male SAE Quick Connect with 1/8" NPT Port

***Does not include an ethanol sensor.***

Specifications

• Pressure Sensor: 0-10 Bar
• Thread: 1/8" Male NPT (requires Teflon tape)
• Fuel Line connection (if selected): either 5/16" to connect in fuel line or 3/8" to connect to ethanol sensor
• Weight (no connector): 0.35 lbs
• Weight (5/16" connector): 0.40 lbs
• Weight (3/8" connector): 0.50 lbs
