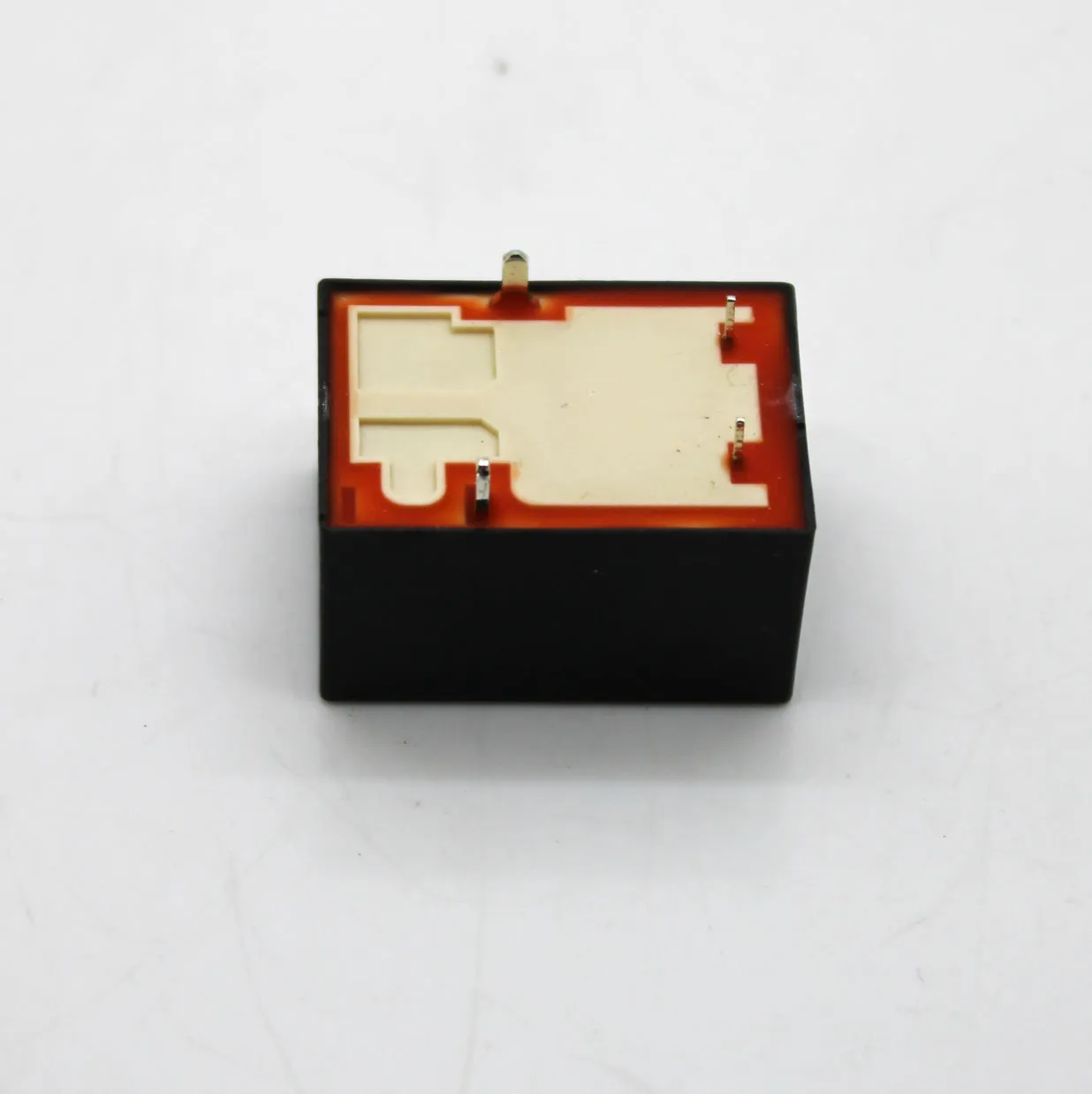

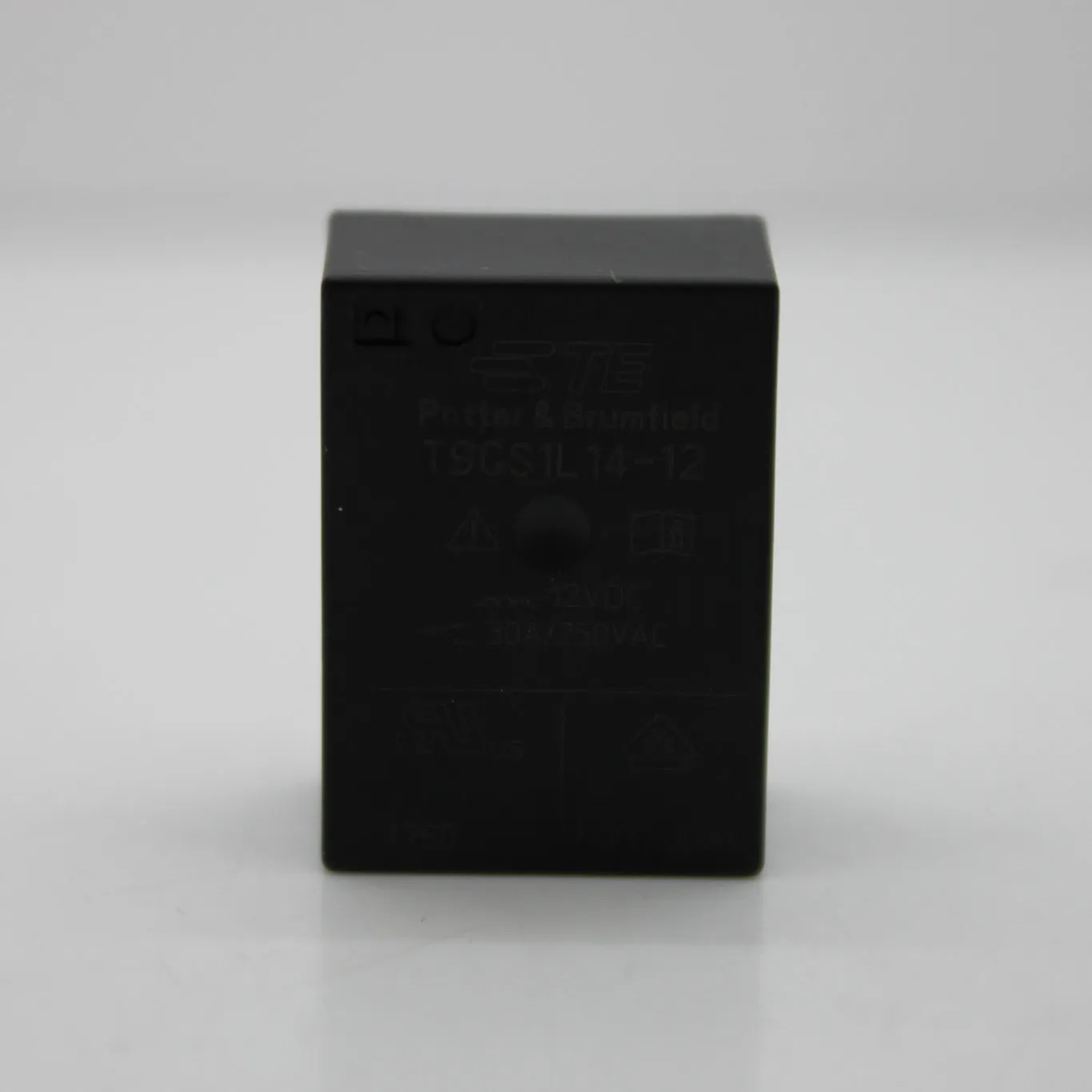

TE Connectivity 12VDC 30A General Purpose Relay T9GS1L14-12.

This Item comes as pictured and does not include any additional parts or accessories.

Specifications:

• Manufacturer: TE Connectivity
• Product Category: General Purpose Relays
• Product: Power Relays
• Coil Voltage: 12 VDC
• Relay Contact Form: 1 Form A (SPST-NO)
• Contact Current Rating: 30 A
• Contact Termination: Solder Pin
• Mounting Style: PCB Mount
• Switching Voltage: 480 VAC
• Coil Type: Non-Latching
• Coil Resistance: 160 Ohms
• Contact Material: Silver Tin Oxide (AgSnO)
• Series: T9G
• Length: 29 mm
• Width: 21.5 mm
• Height: 15.7 mm
• Power Consumption: 900 mW

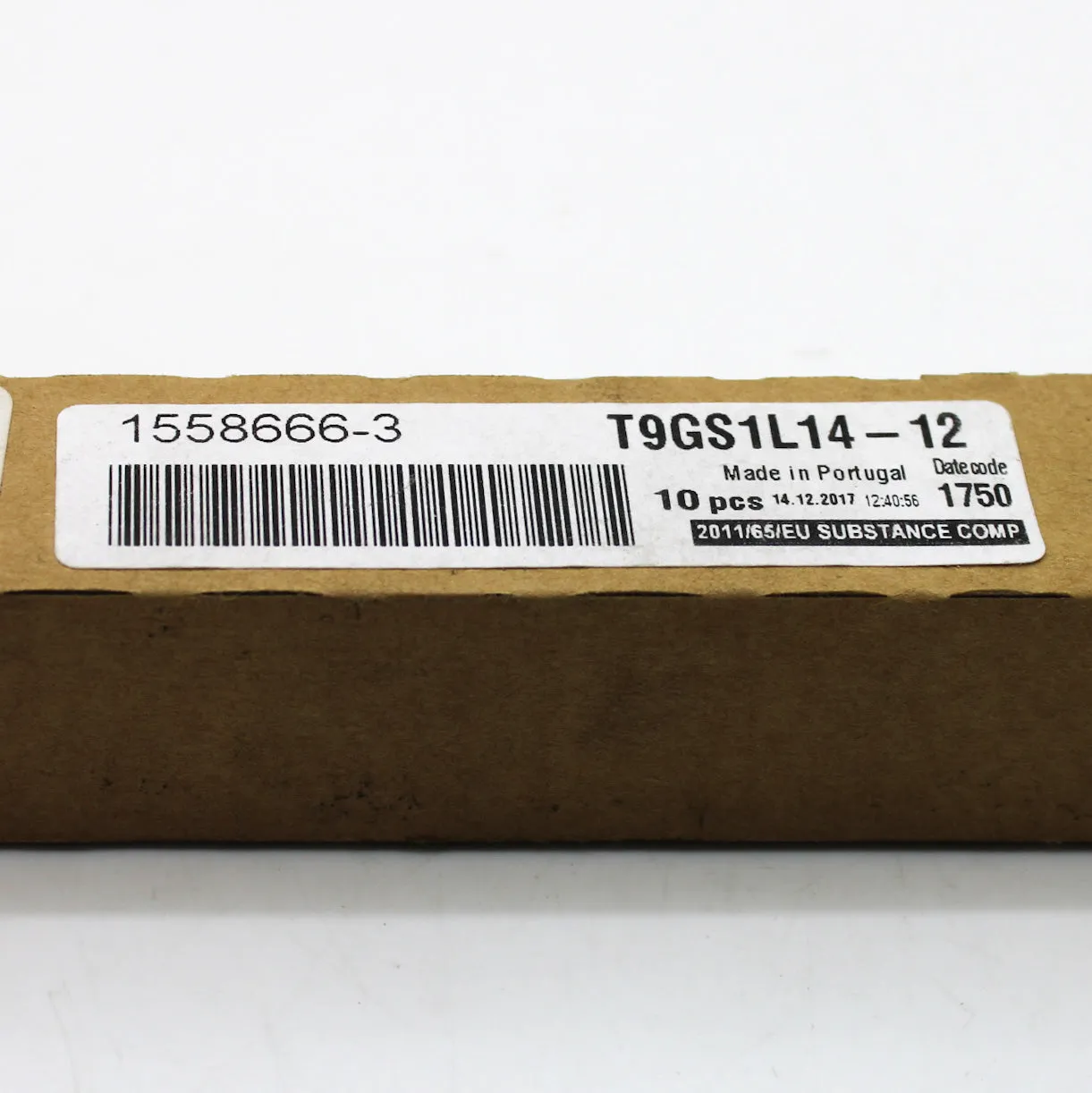

• Part # Aliases: 1558666-3
• Unit Weight: 1 oz
